[烛光生存狂]-斯柯达T-25中型坦克简介

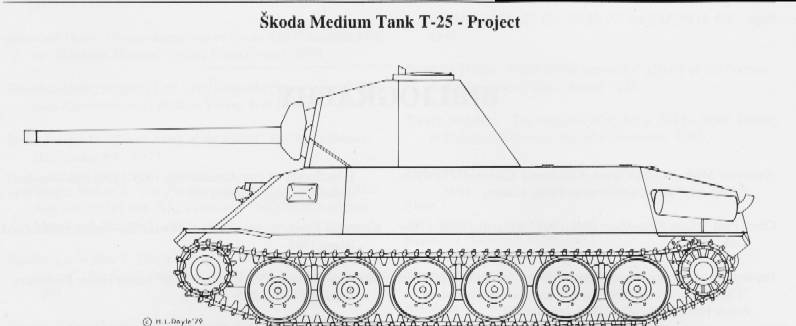

In 1941 Skoda tried to get back into tank manufacture, when it offered its prototype of the T-25 medium tank. It was clearly influenced by the T-34 design, as it had well-sloped armour and a turret well forward.

1941年斯柯达试图重新开始进行坦克生产工作,他们拿出了一款名为T-25中型坦克的原型车.很明显该车参考了苏联T-34的设计,车体前部采用了倾斜装甲.

Skoda planned to use a new eight cylinder engine with an output of 450 hp, which would have given the vehicle a very favourable power/weight ratio of 22 hp/tonne and a high speed of 60 km/hr.The vehicle was planned to be 6.04m long and 2.75 m wide, with 640 mm wide tracks and a ground pressure of 0.68 kg/cm2. The vehicle was designed to cross a ditch 265 cm wide, wade in water 120 cm deep and negotiate a 40 degree gradient.

斯柯达计划采用一台功率达到450马力的新型8缸发动机.可以让车辆达到非常合适的功率重量比22,马力/吨,最高时速达到60公里/小时.车长6.04米,2.75米宽,车辆设计可以通过265厘米宽的壕沟,涉水深120厘米和40度斜坡.车重31吨,装甲最大厚度60毫米.

Skoda also developed a new 7.5 cm A18 KwK tank gun, semi-automatic breech and provided with a drum auto-loader. The gun's barrel was cleaned with compressed-air after firing, and the traverse of the turret was hydraulically operated. Though very advanced, this design did not elicit any interest from Wa.Pruf-6 and did not get past the mock-up form.

斯柯达为此研制了一种新型的A18 KwK 75毫米坦克炮,半自动炮尾和自动装填.发射后用压缩空气对炮管进行清洁.炮塔采用液压旋转.尽管设计非常前进,但是这个设计没有引起德国Wa.Pruf-6的兴趣.只是停留在木制实体模型阶段.

In January 1943, Skoda offered a self-propelled 10.5 cm howitzer on the T-25 chassis, under the designation le.F.H.43(sFL) Skoda. The howitzer was in a fully rotating turret, and as the competing designs from that time was removable from the vehicle. With the armour between 16 and 30 mm, the weight was calculated at 24.2 tonnes. The gun could fire a 14.8 kg shell at 610 m/sec up to a distance of 13 km. This vehicle was built only as a wooden mock-up and was not accepted for production.

1943年1月,斯柯达在T-25的底盘上研制了一款105毫米自行榴弹炮.设计名称为斯柯达le.F.H.43(sFL).榴弹炮安装在一个密封的炮塔内,这是一个竞赛的设计,炮塔可以从车上卸下.装甲厚度在16-30毫米之间.重量大约为24.2吨.火炮可以以610米/秒的初速发射14.8公斤达到13公里的距离.这个设计和T-25一样只造了木制的实体模型.

新找的一些资料:

http://www.ww2incolor.com/forum/showthread.php?t=3292&page=22

The T25 is addressed in "Czechoslovak Armored Fighting Vehicles 1918-1948" by Vladimir Francev and Charles Kliment (pg 245).

It never left the drawing board in 1941, but here are details:

It was to be fitted with a new eight cylinder engine generating 450 HP, giving the vehicle a 22 HP/ton power/weight ratio and projected top speed of 60km/hr.

Length: 6.04m

Width: 2.75m

Tracks: 460mm wide, 0.68 kg/cm^3 ground pressure

Vehicle to be designed to cross a 265cm wide ditch, wade in 120cm of water, and climb a 40 degree incline

The main gun was to be a semiautomatic 7.5cm A18 KwK gun with drum auto-loader - both to be designed by Skoda. The gun tube was to be cleaned using compress air and the turret was hydraulically operated.

The Germans rejected the design, no reason is given for rejection. My theory is that Skoda just missed the boat, and DB and MAN designs for the "Panther" were just too far along by the time Skoda pitched their design. Skoda could have also been lucky and proprosed the 20 ton T25 at a time when the DB and MAN designs were going from 20-24 tons to 30+ tons to meet an ever increasing armor requirements.
