In late 1943, Heereswaffenamt Wa.Pruf-6 asked Auto Union to develop a light, fully tracked reconnaissance vehicle, capable of carrying 6-8 men in an open-top superstructure. The vehicle was designed to attain speeds in excess of 50 km/hour and was to be lightly armored.

1943年末,陆军兵器局第6兵器测试处(Heereswaffenamt Wa.Pruf-6)要求Auto Union研制一种轻型全履带侦察车,顶部敞开可以装载6-8人.车辆设计时速要求可以达到50公里/小时,采用薄装甲防护.

Auto Union first built a wooden mock-up, and after the layout was approved, in early 1944 constructed two prototypes for evaluation.The vehicle had an open top, with the engine in the back and the powered front sprockets. The driver sat on the left, and next to him was a machine gun in the usual "Kugelblende". In the vehicle were two long benches for the rest of the crew.

车辆总体布局确定后,uto Union首先制造了一个木制实体模型.1944年初制造了两辆原型车用来评估.车辆顶部是敞开式的，发动机位于车体的后部，驱动前主动轮。驾驶员在车体前部左侧,在他边上有一挺机枪安装在所谓的"Kugelblende"上.其他乘员坐在车体后部的两条长板凳.

The engine used was the Maybach HL 50Z of 5,000 cc displacement and 200 HP(147.8 kW) output. It was squeezed into the left rear of the vehicle, to make room for the crew door, which was on the right side of the rear plate.The armor was fairly light, 30 mm front and 14.5 mm sides and rear.

发动机采用的是迈巴赫HL 50Z 5000cc排量发动机,功率为200马力.为了安置乘员舱门,发动机被塞进了车体后部左侧.装甲非常的薄弱.正面30毫米,侧面14.5毫米.

The carriage(suspension) consisted of five overlapping wheels on each side with a torsion bar suspension, and the tracks were from PzKpfw IV. The gear-box was hydraulic. The prototypes were tested in the summer of 1944 on the testing track and were well liked for both their layout and their mobility. Problems were encountered with the gear-box. Therefore, and also because of the decision of September 1944 to limit all new constructions to two chassis only, namely the Panther and 38(t), it was eventually decided to order a prototype from BMM in Prague(布拉格), maker of the Jagdpanzer 38 Hetzer.

悬挂装置包括每侧5个重叠轮,采用扭力杆式悬架.履带则来自四号坦克.变速箱为水压.1944年夏天对原型车进行了测试,测试中履带的表现非常的出色.问题主要出自变速箱.

BMM

Ihe WaPruf-6 Pz.la ordered two prototypes from BMM on September 6,1943. They were sup- posed to be based on the PzKpfw 38(t)nA. One was planned with the Tatra(太脱拉)103 Diesel engine, and one with the Praga NR engine with an output of 280 HP.

The prototypes were built in 1944. They were wider than the Auto Union model and heavier, being much better armored. Their front plate was 50 mm, sides 30 mm and the rear plate 20 mm thick. They retained the general layout with the open top and the engine in the rear, but disposed with the Kugelblende for the front machine gun, which was instead mounted behind an armored shield as carried by the SdKfz 250/251 halftracks. A rear mount for another machine gun was also provided.

The new Tatra 103 twelve cylinder air-cooled Diesel put out 220 HP( 162.6 kW) at 2600 rpm, giving the vehicle a maximum speed of 64 km/hour on roads. Enough fuel was carried for endurance up to 600 km. The suspension used the well-tested layout of the PzKpfw 38(t), and the Praga-Wilson gear-box was used.

The BMM "Katzchen"(Little Cat) was clearly a better design than the Auto-Union one, being better armored and faster. The use of the Diesel engine made it probably also safer for its users. If manufactured in quantities, it would have proven to be not only a suitable reconnaissance vehicle, but also a good armored personnel carrier as well. The fate of the two prototypes after the end of the war is not known, but the Czech army clearly was not interested in their further development.

"KATZCHEN" COMPARISONS

Auto-Union

Weight: 8 t

Length: 5.12 m

Width: 2.36 m

Height: 1.50 m

Engine: Maybach

Output: 200 hp

Max speed (road): 55 km/hr

Endurance:

Armour Front: 30 mm

sides: 14.5 mm

rear: 14.5 mm

Crew: 6-8

Armament: 1 -7.92 mm MG34

BMM

Weight: 10.5 t

Length: 5.10 m

Width: 2.50 m

Height: 1.50 m

Engine: Tatra 103/Praga NR

Output: 220 hp/280 hp

Max speed (road): 64 km/hr

Endurance: 600 km

Armour front: 50 mm

sides: 30 mm

rear: 20 mm

Crew: 6-8

Armament: 2 - 7.92 mm MG34.

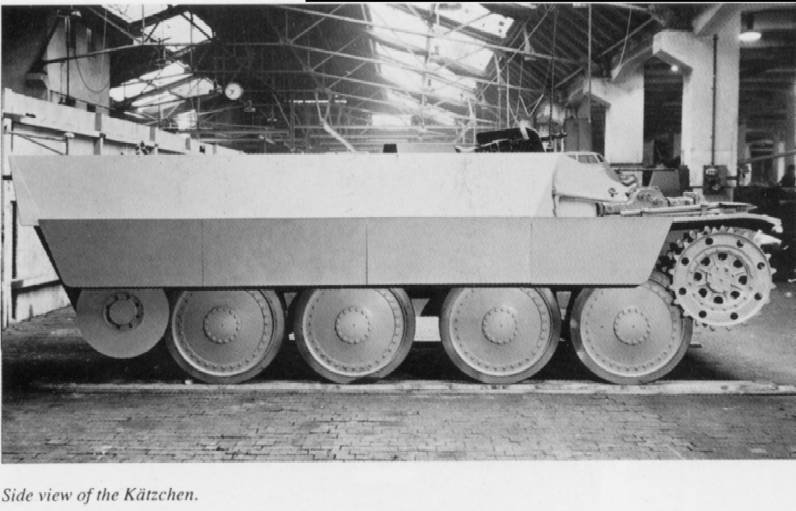

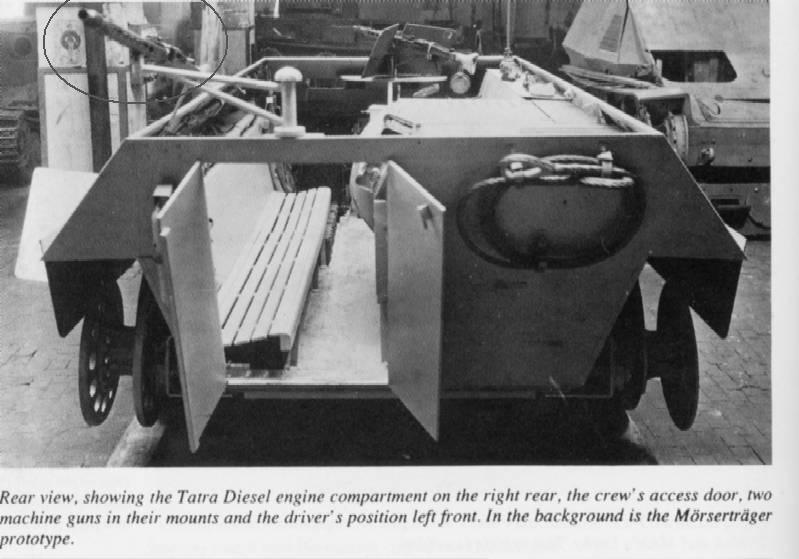

The above text and photos of the BMM "Katzchen" were taken from 'Czechoslovak Armored Fighting Vehicles 1918-1948', by Charles K.Kliment & Vladimir Francev.

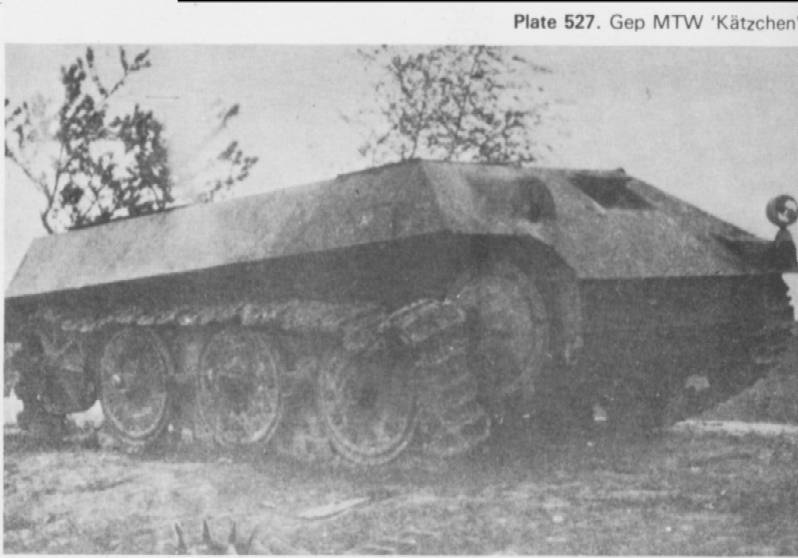

The photo of the Auto-Union version was taken from 'Encyclopedia of German Tanks of World War Two', by Peter Chamberlain and Hilary L. Doyle.
